Description
Description

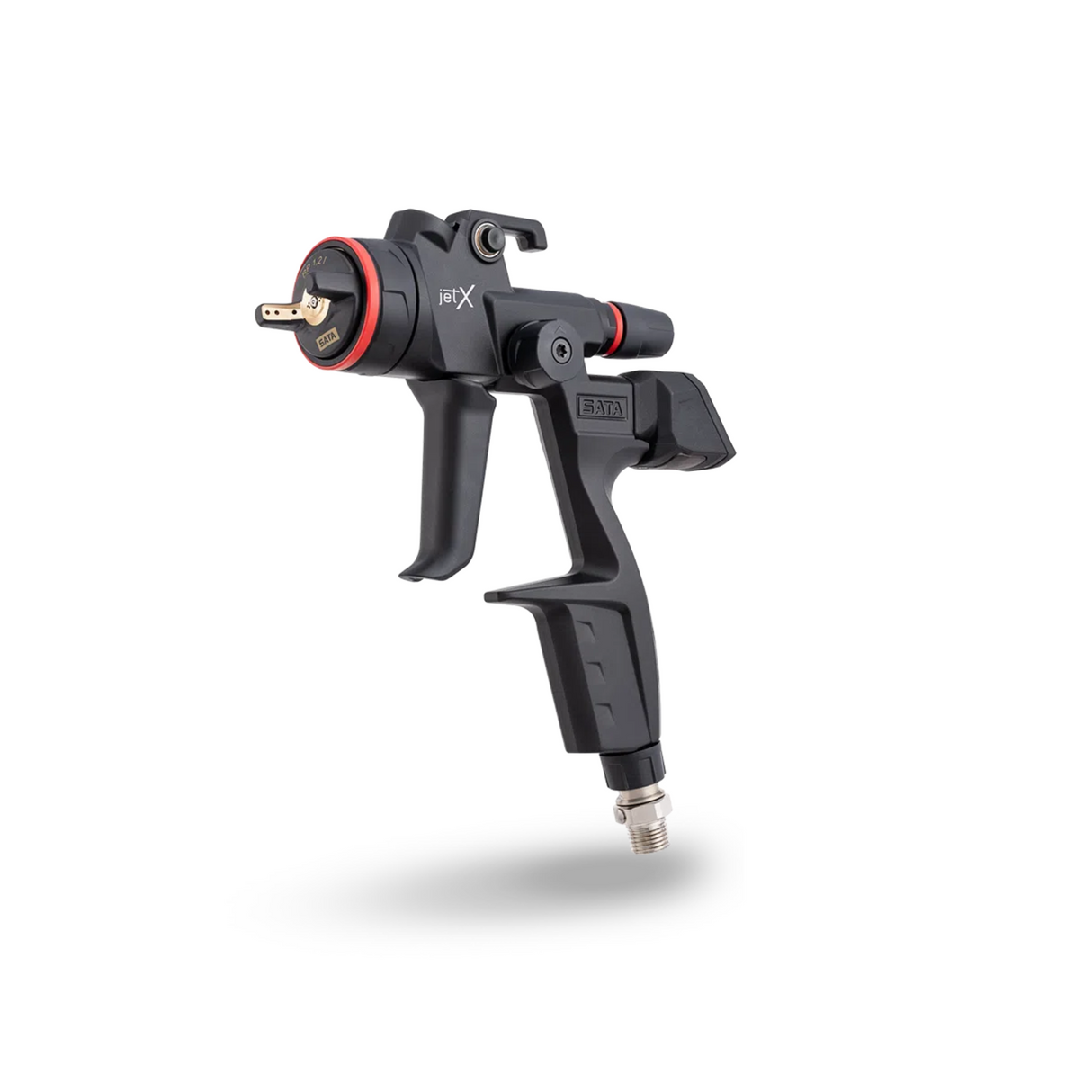

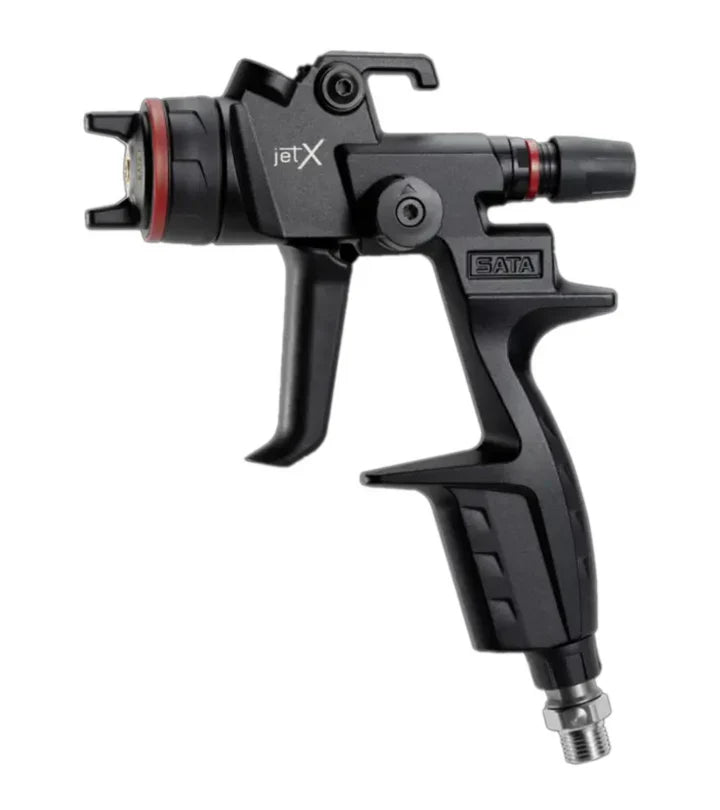

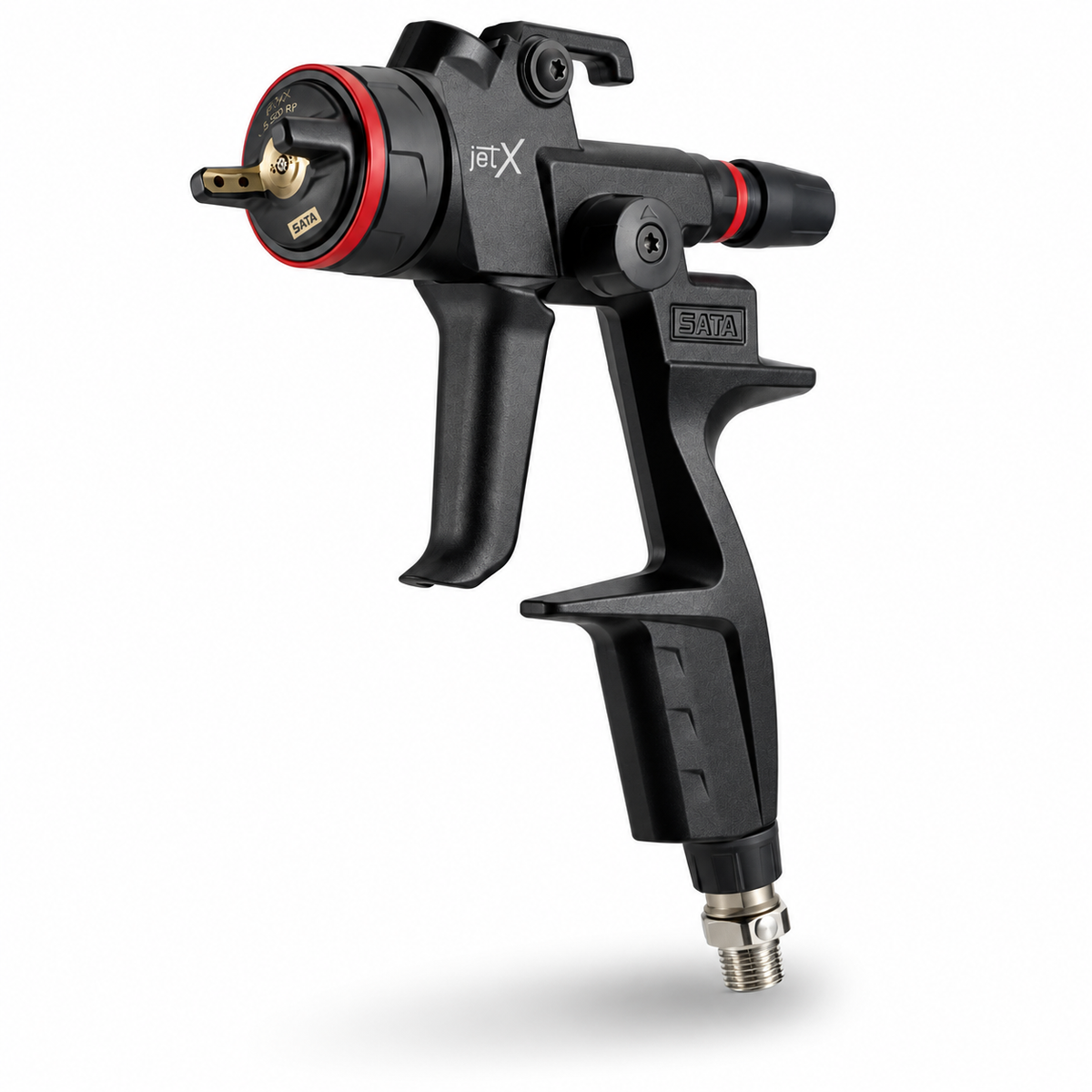

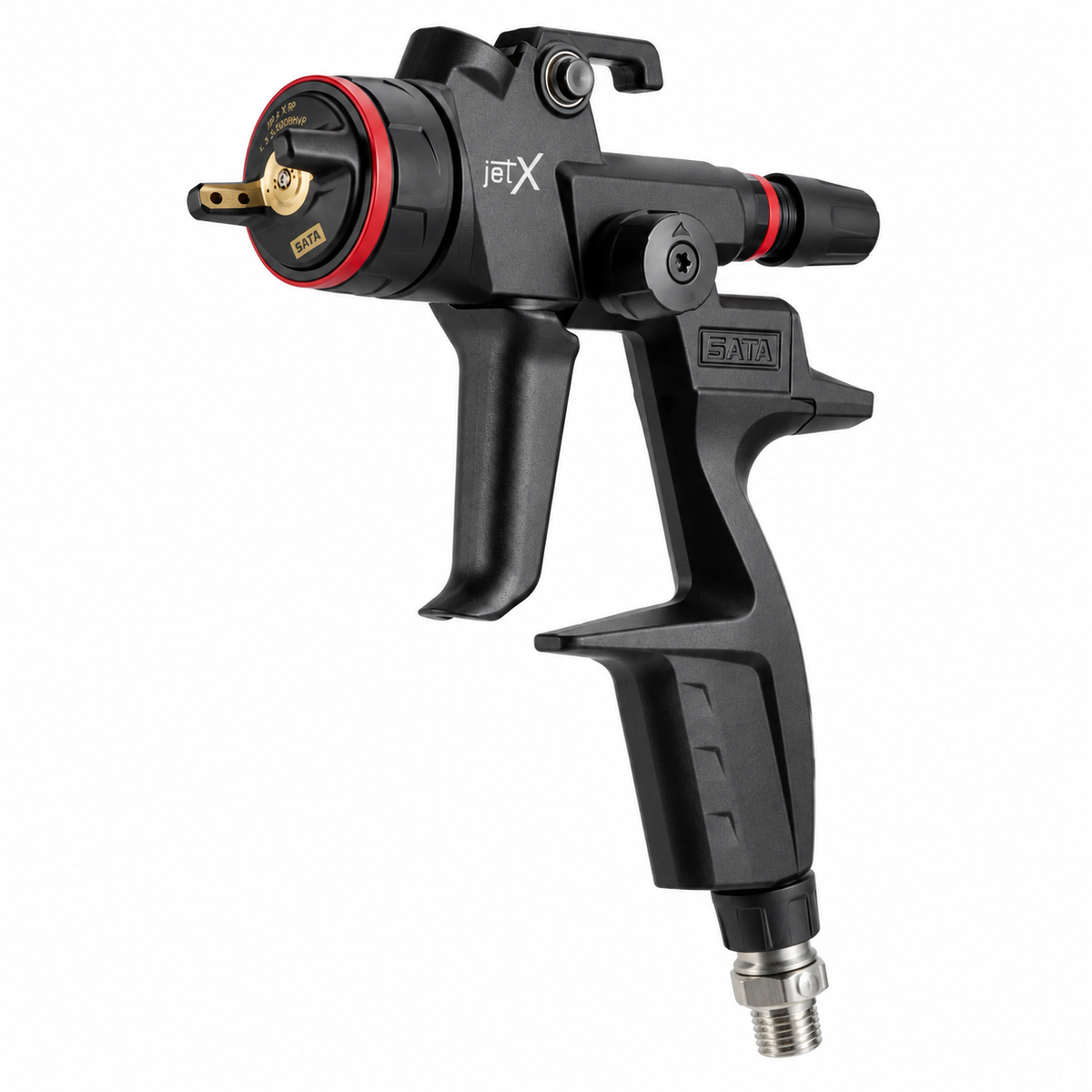

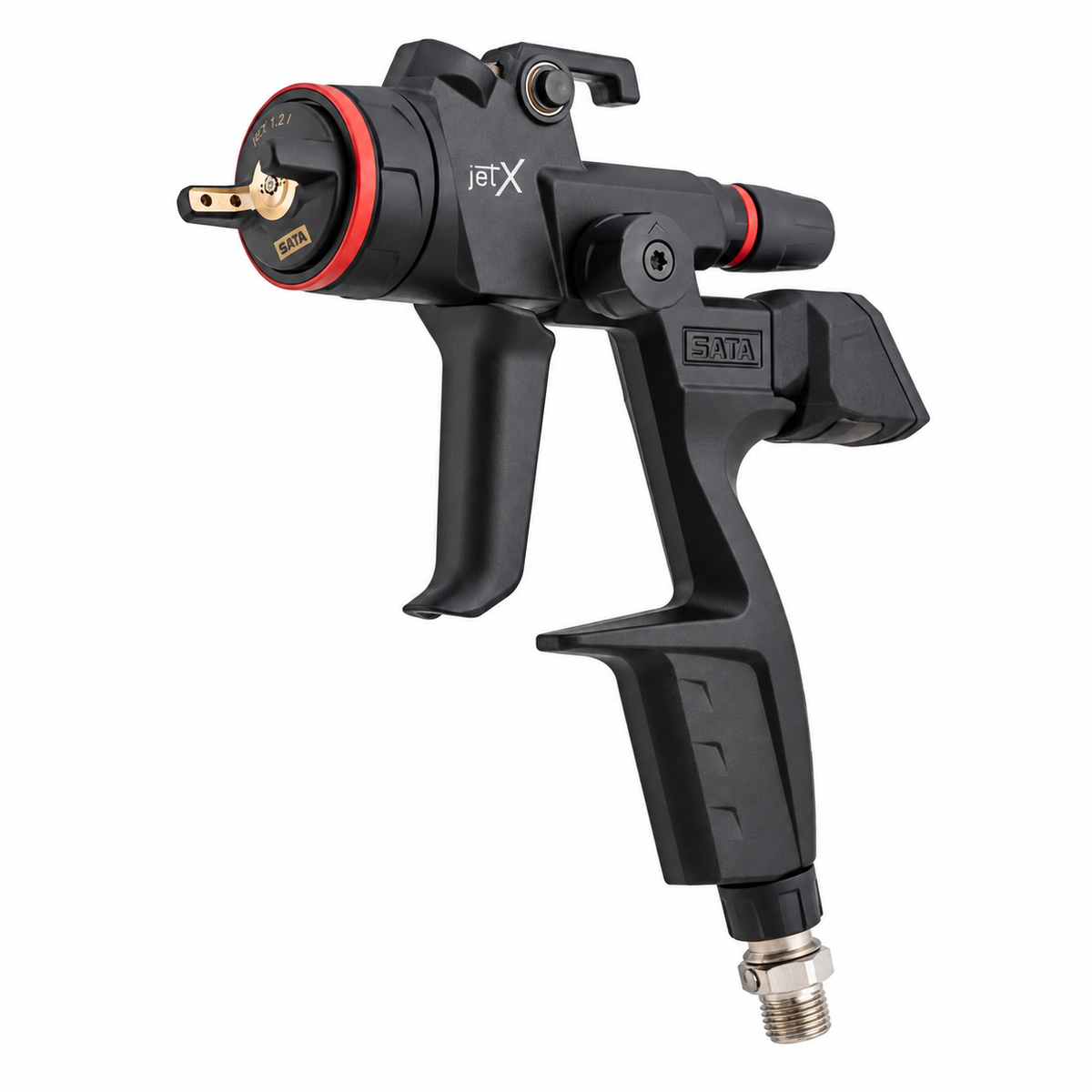

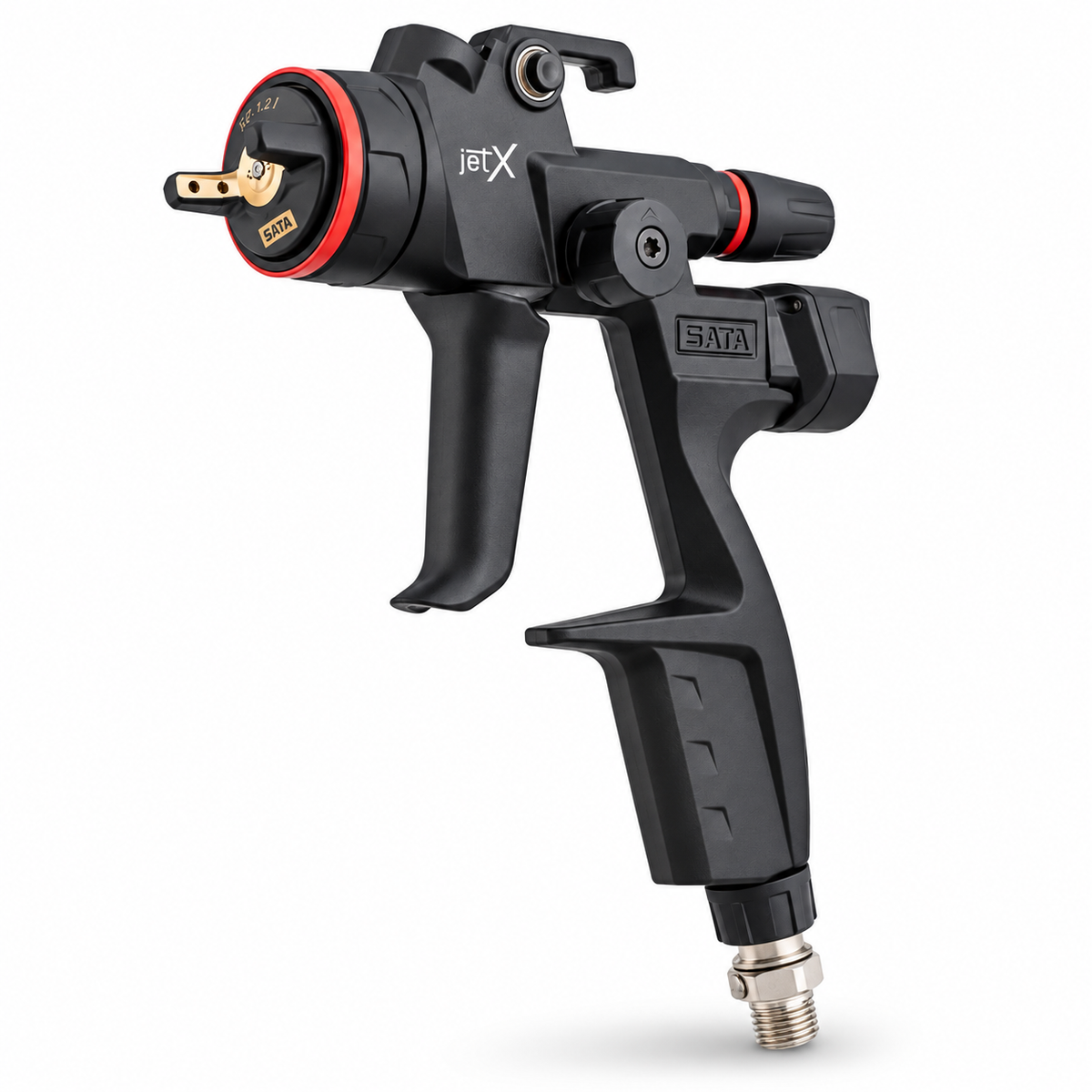

Jet X Spray Gun – Works for You
The Jet X spray gun is engineered for professionals who demand a cleaner finish, consistent atomization, and reliable performance. Built around an innovative labyrinth airflow system, Jet X delivers exceptionally fine and homogeneous atomization for both HVLP and RP technology—helping you achieve a new level of surface quality with every application.
Innovative Labyrinth Airflow System
The Jet X nozzle concept uses a precision labyrinth airflow design that guides air through the nozzle so it exits each orifice at the same pressure, free from turbulence and pulsation. This produces a uniform spray pattern and a smooth, professional finish.
Key Features & Product Advantages
- Outstanding atomization with an innovative labyrinth airflow system
- Uniform spray pattern with clearly defined fade-out zones
- Two jet shapes for your workflow: “O” (Speed) and “I” (Control), with constant fan dimensions across all nozzle sizes
- Available versions: BASIC, DIGITAL Ready, DIGITAL, and DIGITAL Pro
- Jet X DIGITAL Pro features: inlet pressure display, operating time and ambient temperature, adjustable target inlet pressure with alarm function, digital dashboard, and easy switching between bar / psi and °C / °F
- Patented Quick Cup Connector (QCC) secures the cup with a simple 1/4 turn for faster cleaning and cup changes
- QC Quick Change thread enables fast air cap exchange in just one and a half turns
- Extended warranty included on SATA paint spray guns, filters, and main breathing apparatus (where applicable)
Technical Specifications
HVLP Technical Information
| Specification | Value |
|---|---|
| Air Consumption | 445 Nl/min |
| Max. Inlet Air Pressure | 10.0 bar |
| Recommended Inlet Pressure | 2.0 bar |
| Recommended Spraying Distance | 10 – 15 cm |
| Cup Connection Type | QCC |
| Net Weight | 0.084 – 0.637 kg |
| Packaging Unit | 1 piece |
RP Technical Information
| Specification | Value |
|---|---|
| Air Consumption | 335 Nl/min |
| Max. Inlet Air Pressure | 10.0 bar |
| Recommended Inlet Pressure | 2.0 bar |
| Recommended Spraying Distance | 17 – 21 cm |
| Cup Connection Type | QCC |
| Net Weight | 0.084 – 0.637 kg |
| Packaging Unit | 1 piece |
Compatibility
- Compatible with SATA RPS multi-purpose cups and LCS systems
- Compatible with the Additional Digital Air Micrometer: adam X and adam X Pro
Looking for a professional paint spray gun with consistent atomization and an excellent finish? Jet X is designed for reliable performance in automotive refinishing and high-quality coating applications.
Frequently Asked Questions
SataJet Jet X
The Most Digital SATA of all Time

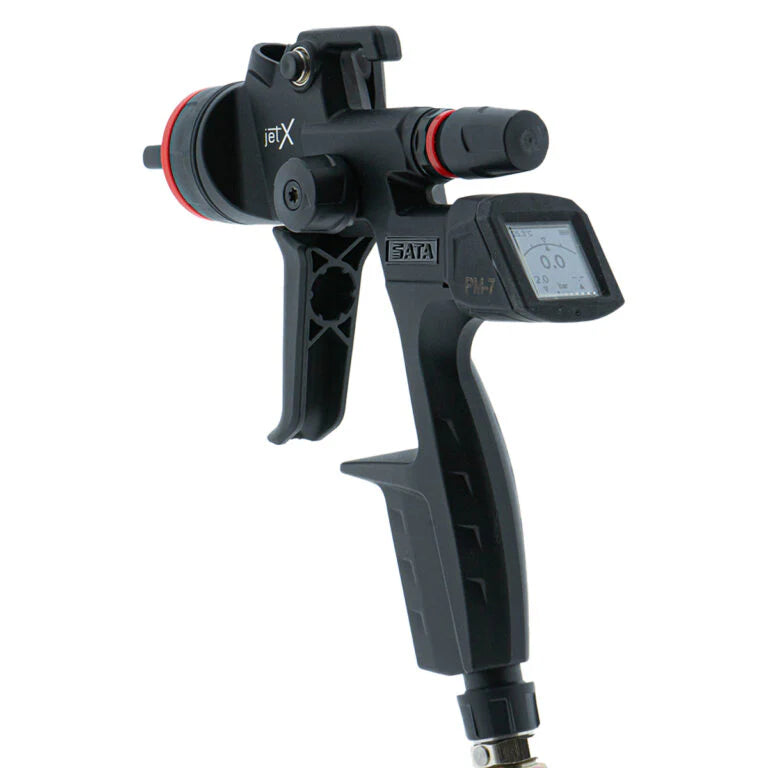

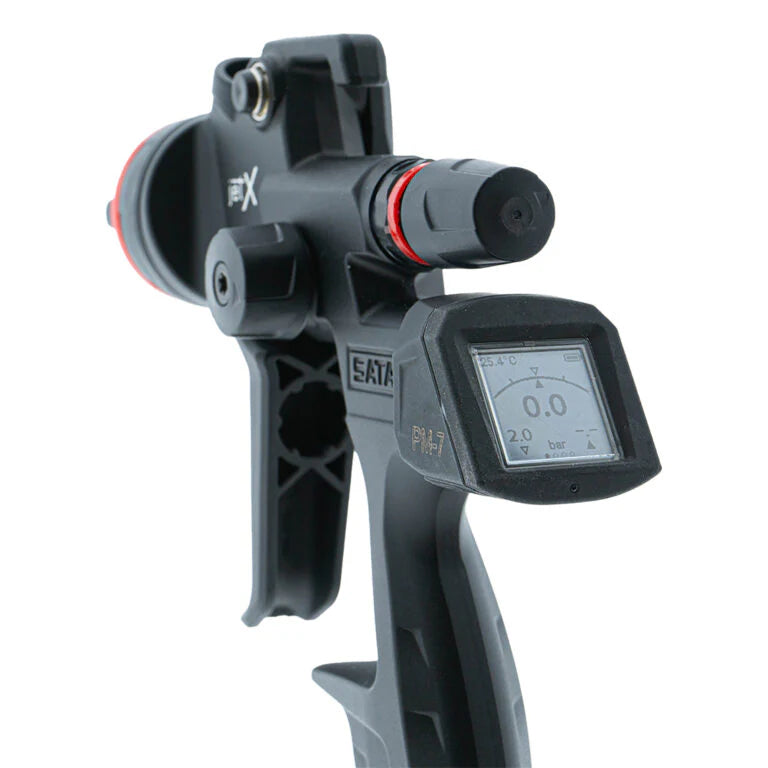

The jet X DIGITAL pro offers the full range of digital functions. Its digital unit, the adam X pro, helps the painter analyse and control the painting process. In line with the “works for you” principle, it therefore helps to optimise results.
Product Advantages
- Innovative labyrinth airflow system for outstanding atomisation
- Uniform spray pattern with clearly defined fade-out zones
- Two jet shapes: “O” (Speed) and “I” (Control) with constant fan dimensions for all nozzle sizes
- Available in the following versions: BASIC, DIGITAL ready, DIGITAL and DIGITAL pro
- jet X DIGITAL pro: Display of inlet pressure, operating time and ambient temperature; adjustable target value for the inlet pressurewith alarm function; digital dashboard; easy change from bar to psi and from °C to °F and much more
Technical Date
