COBRA 2K Truck Bed Liner Gallon Kit

COBRA TRUCK BED LINER Gallon Kit

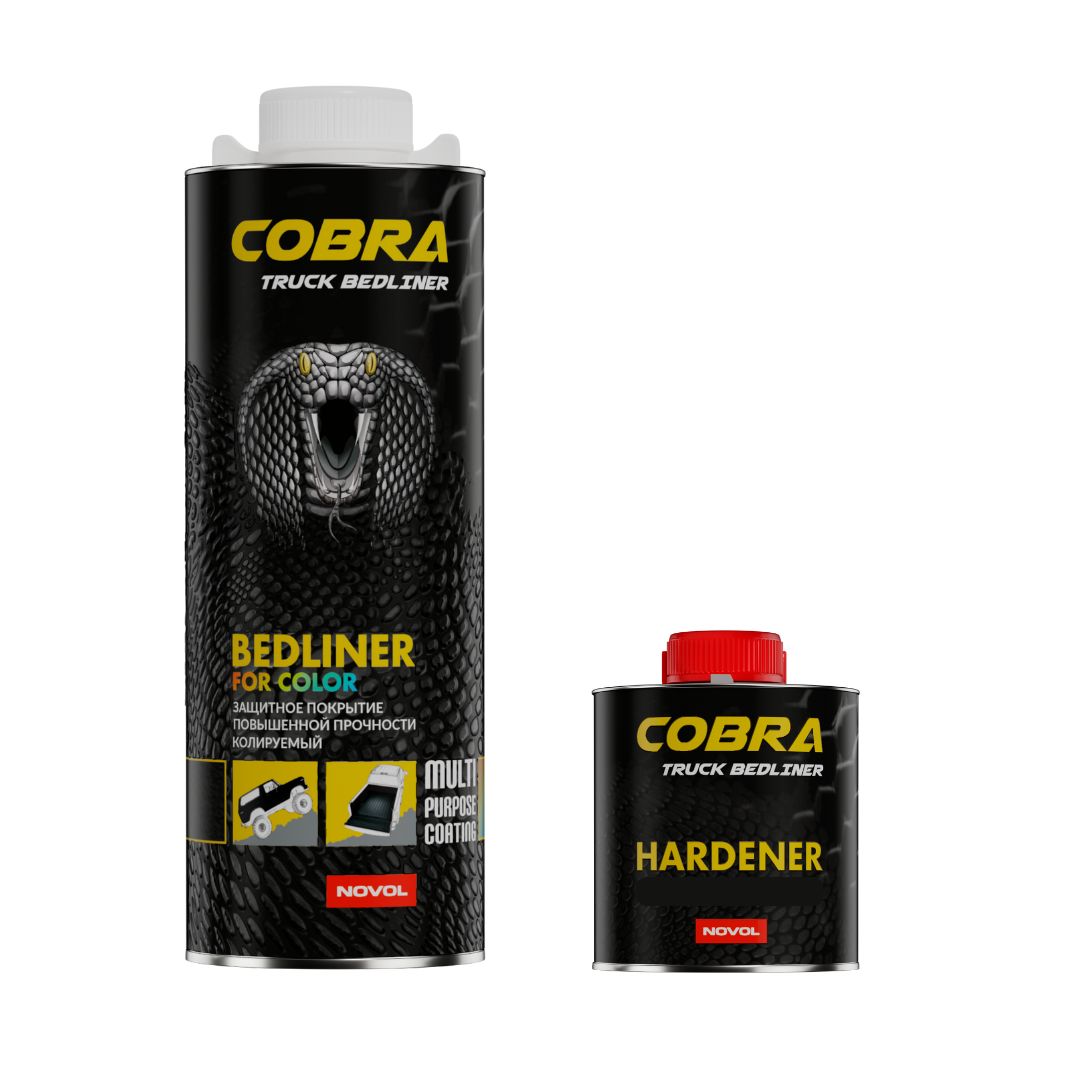

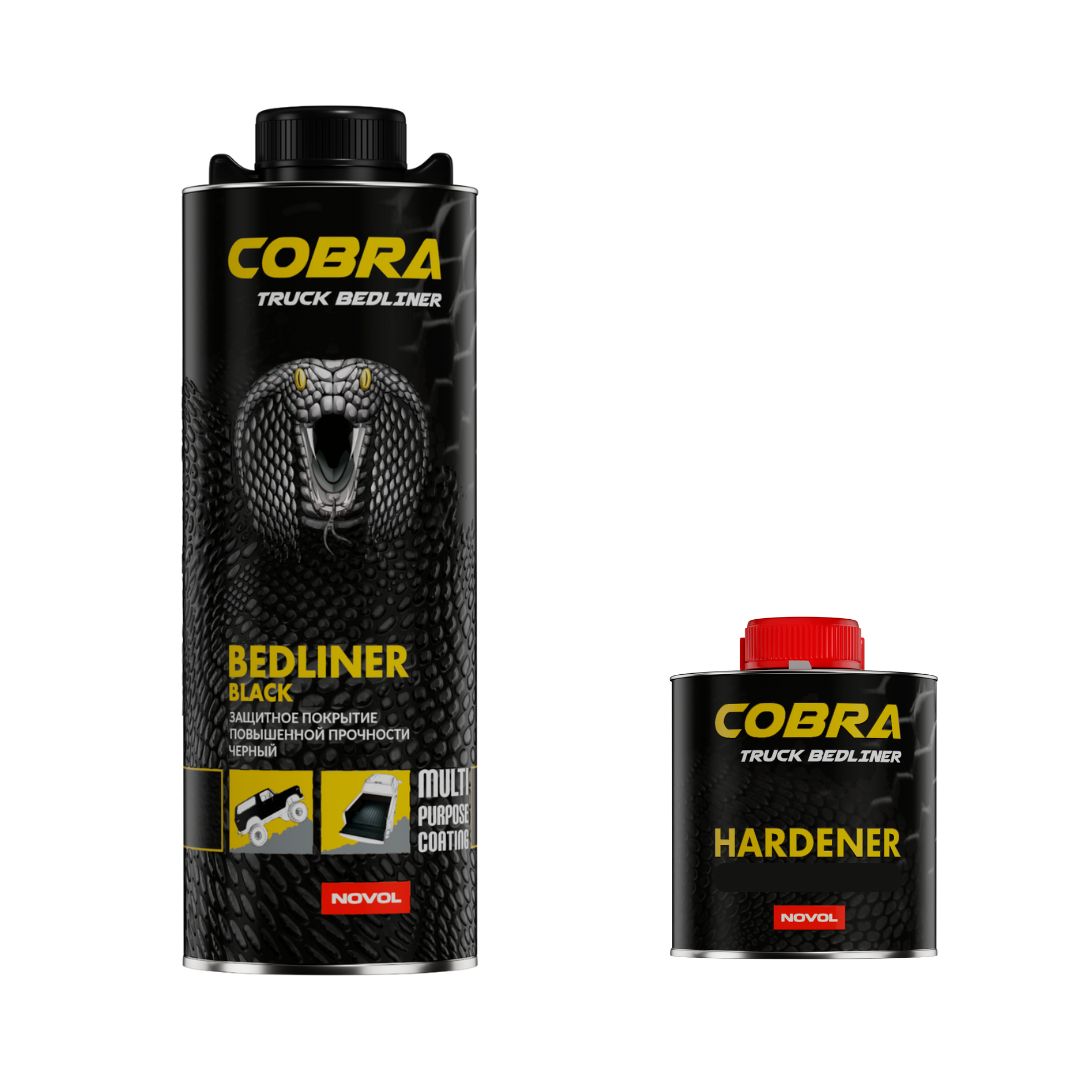

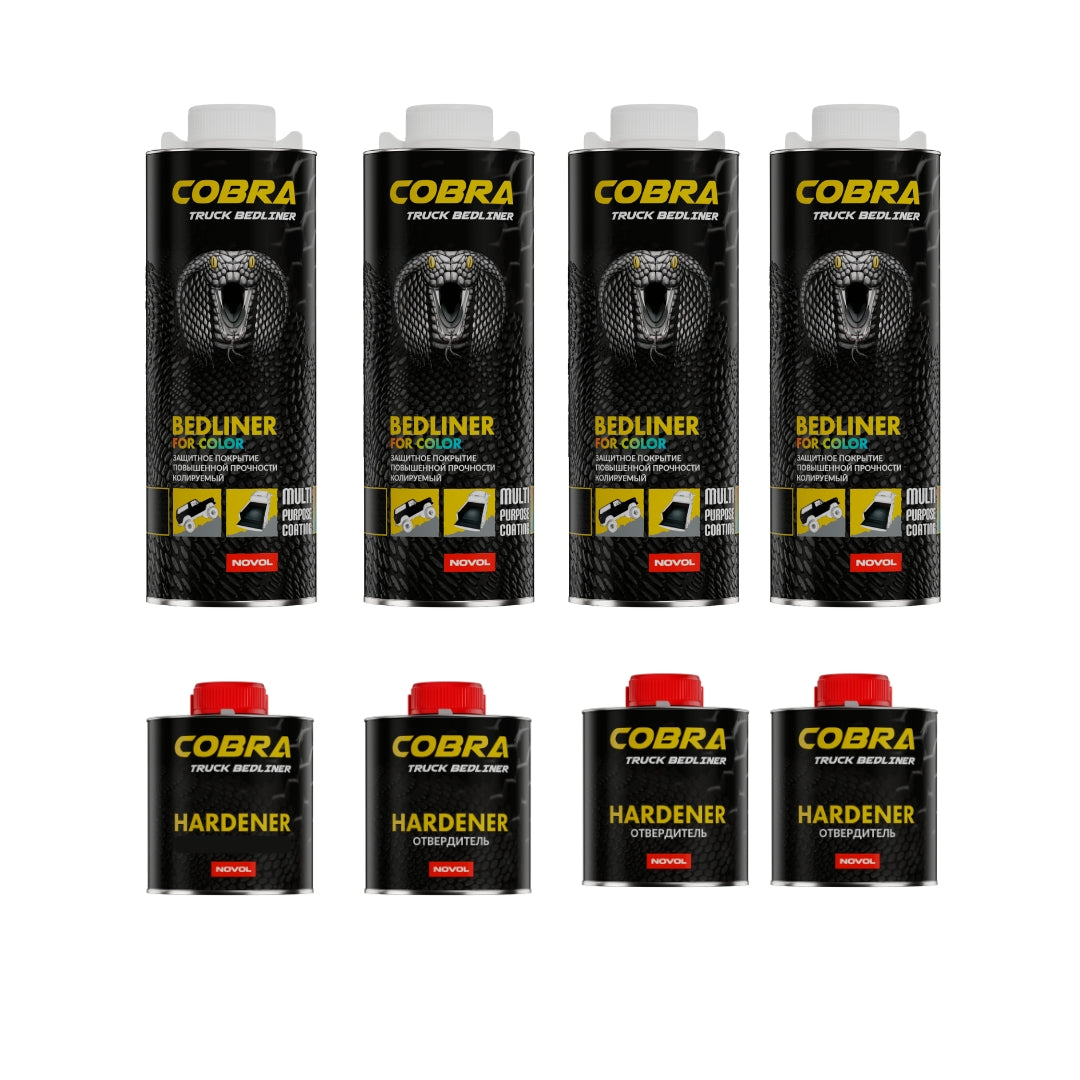

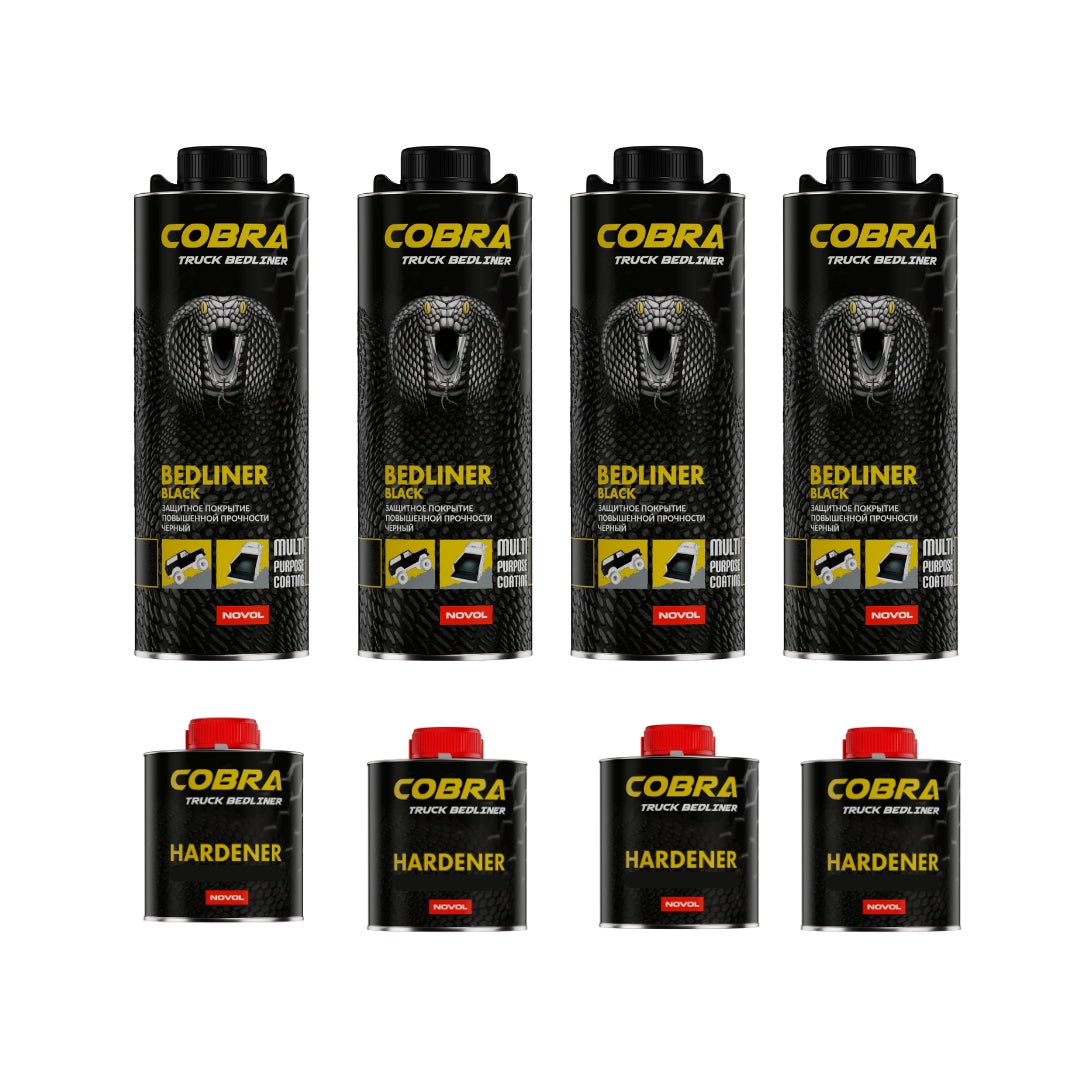

Option 1 Gallon Kit: 4 cans of Bedliner + 4 cans of hardener.

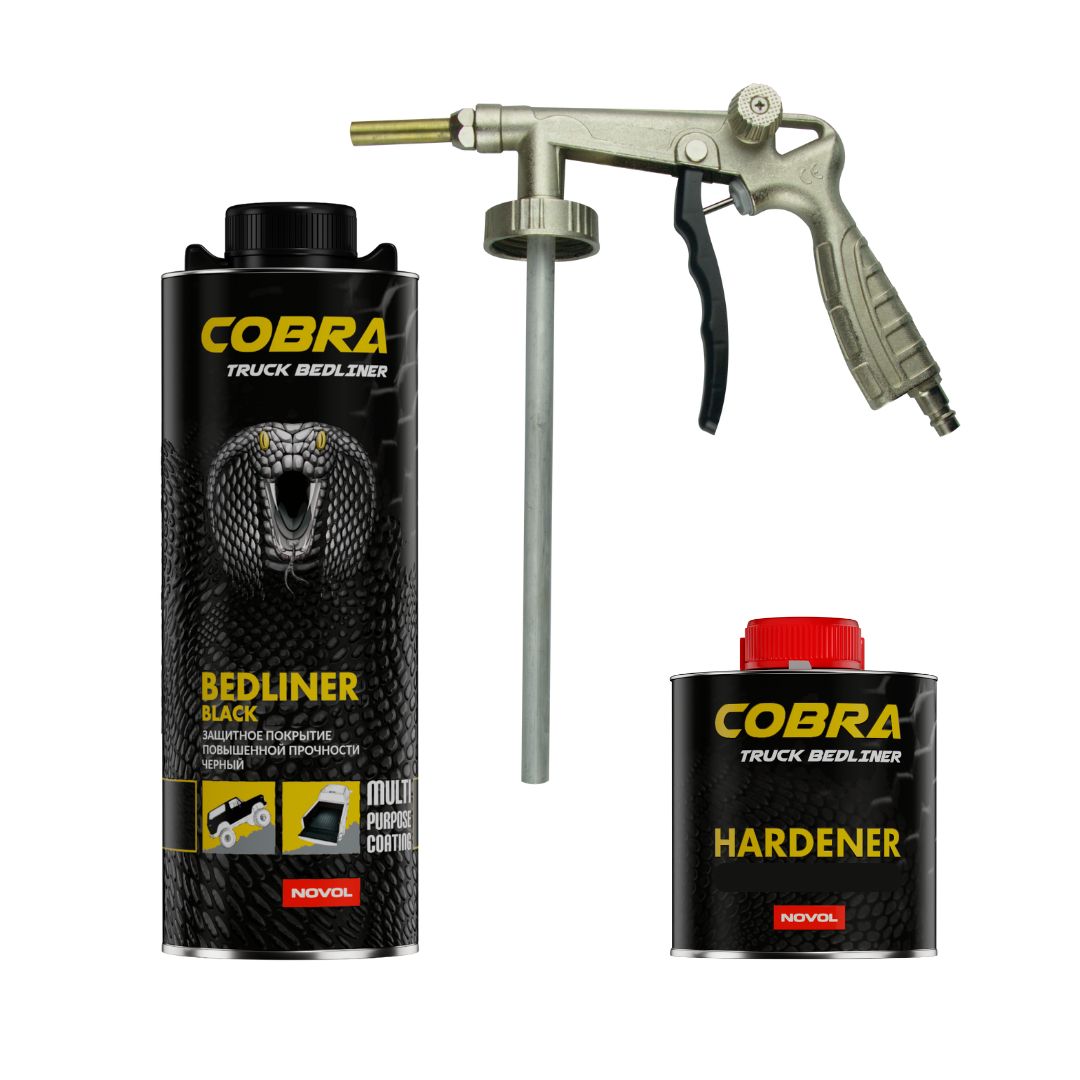

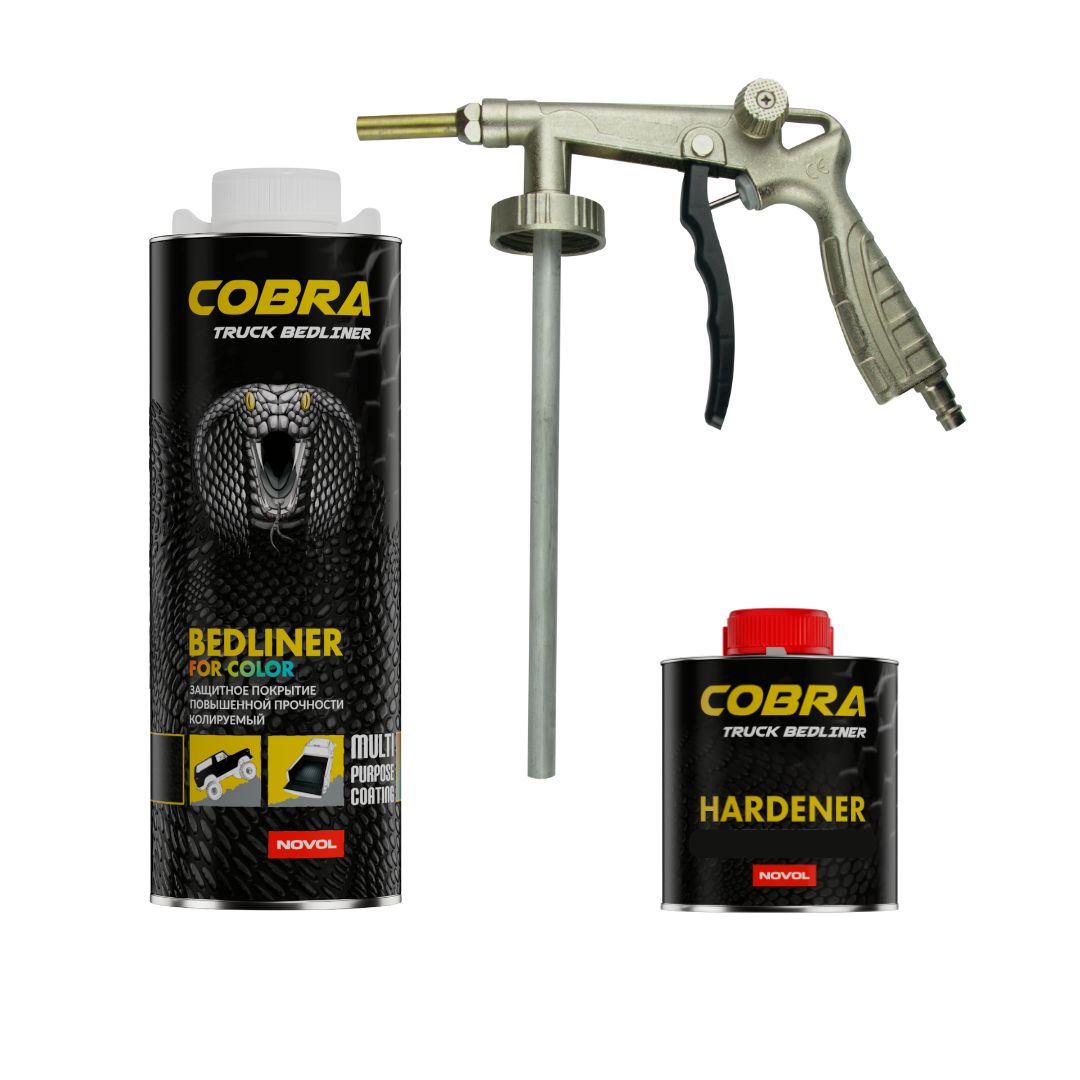

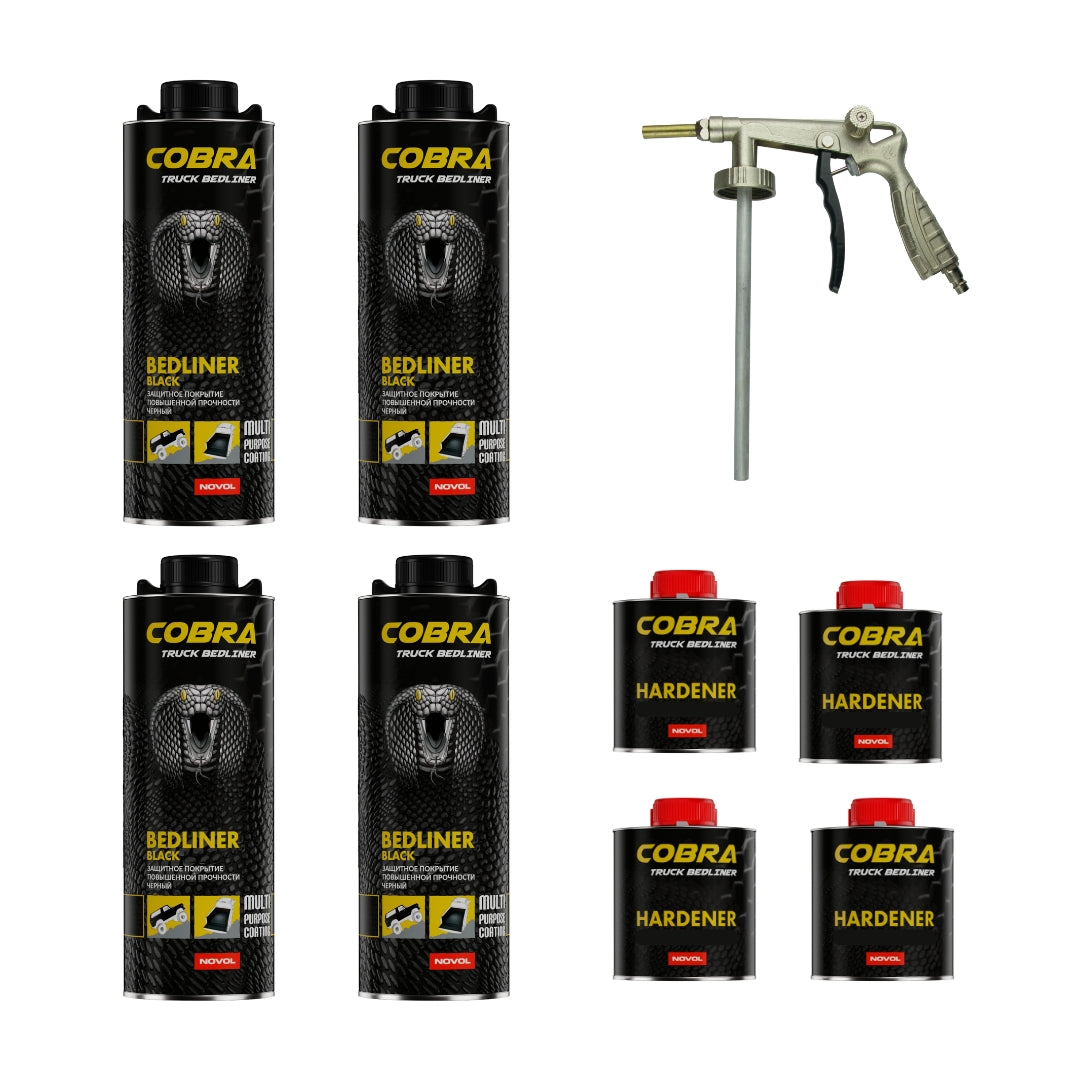

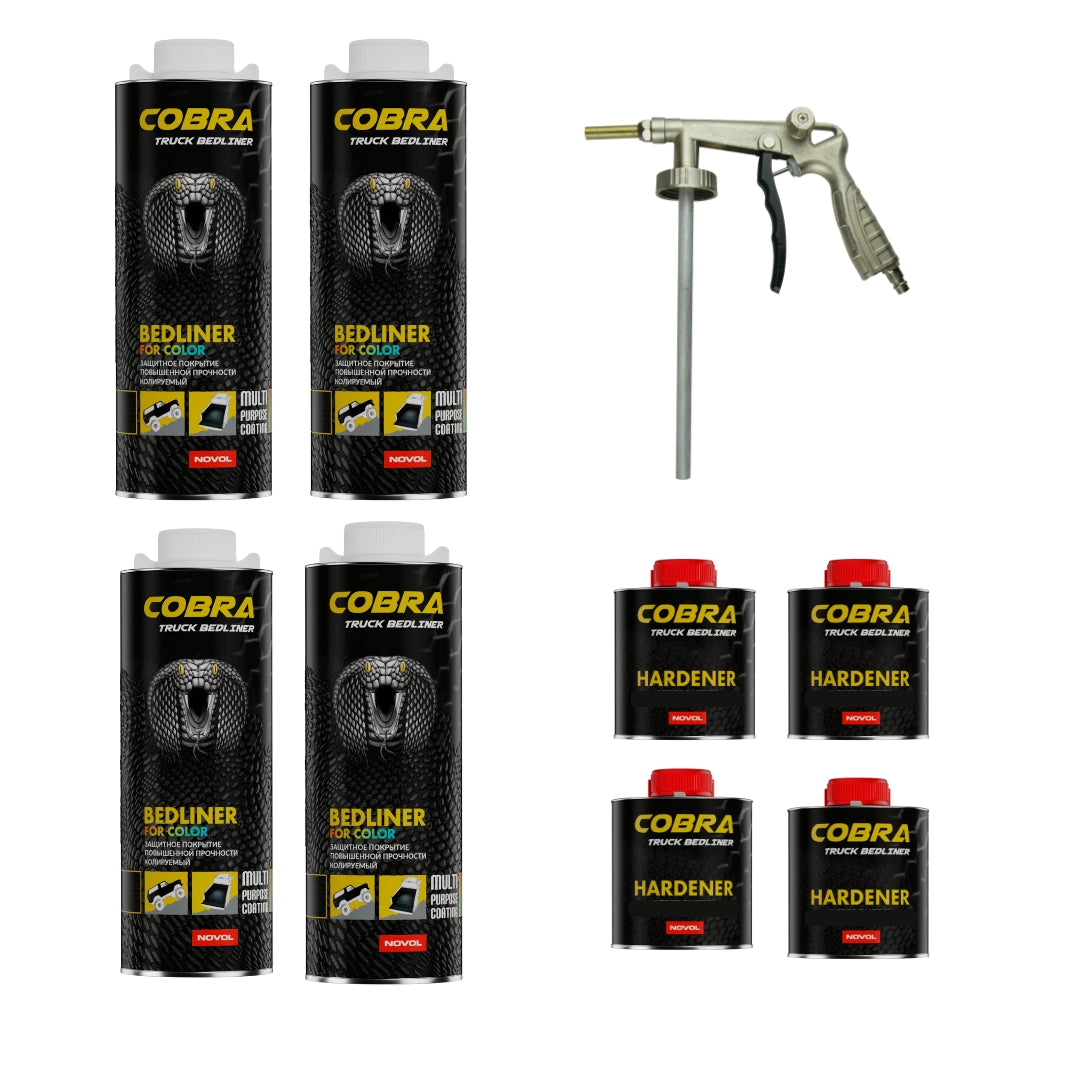

Option 2 Gallon Kit: 4 cans of Bedliner + 4 cans of hardener+Bedliner Spray gun.

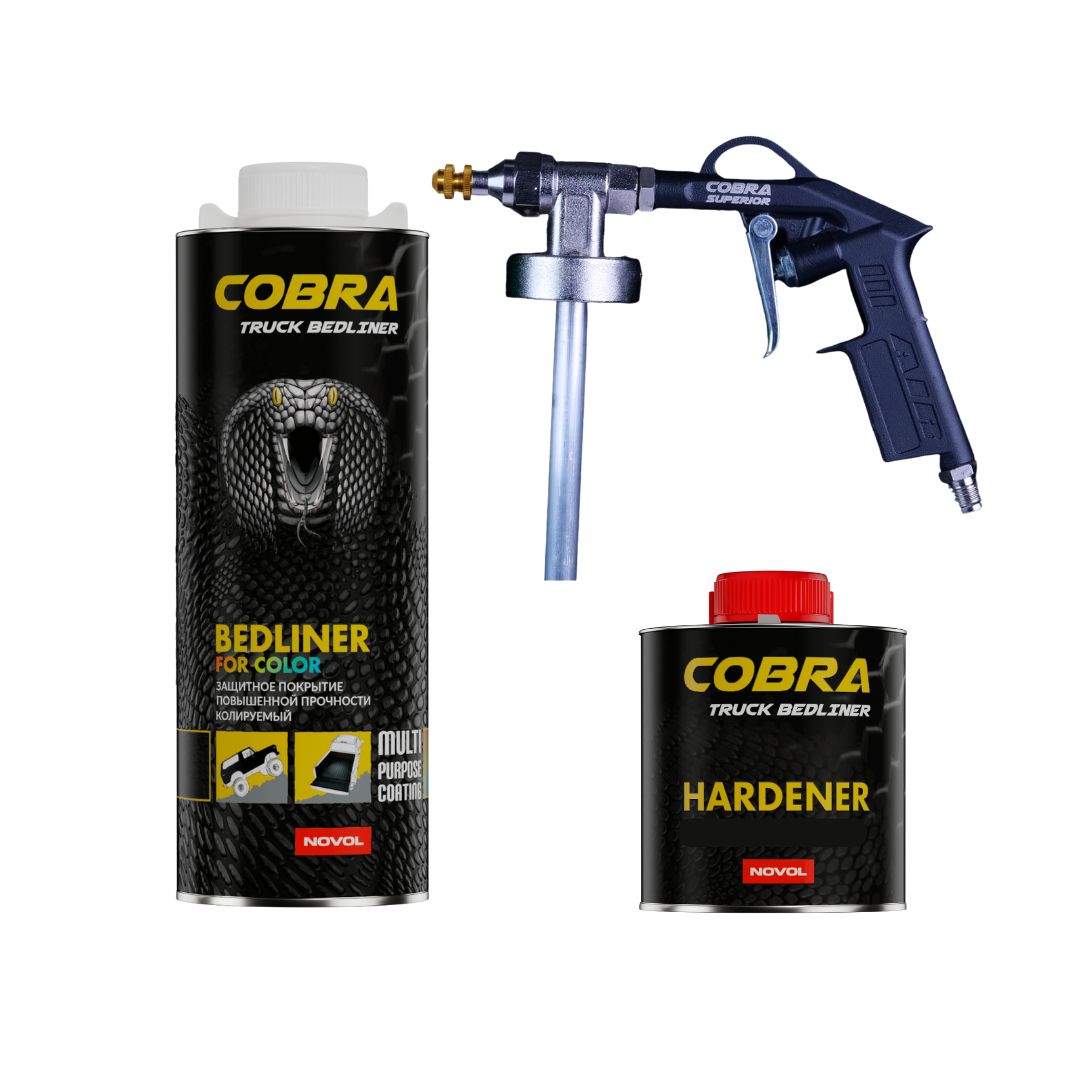

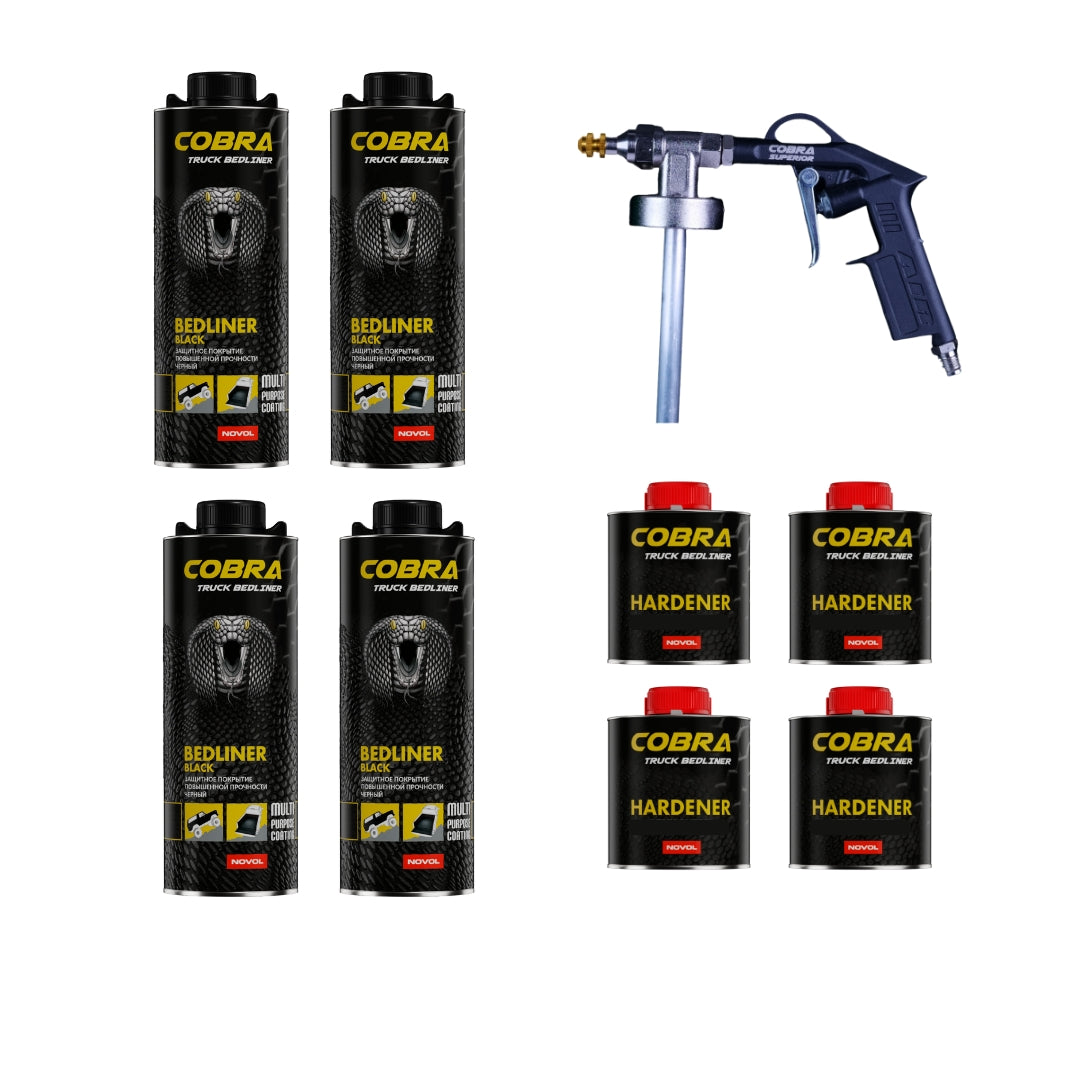

Option 3 Gallon Kit: 4 cans of Bedliner + 4 cans of hardener+Superior Bedliner Spray gun.

Description

2-component polyurethane protective coating with a structure effect. Four quarts kits.

Advantages

● very high mechanical strength and scratch resistance
● ensures high resistance to adverse weather conditions (moisture, high temperature, frost, UV radiation, salt)
● versatile application in all-terrain vehicles, lorries, agricultural machinery, tractors, construction equipment, gardening equipment, etc.
● FOR COLOR version – semi-transparent product in milky-white colour for cross dyeing – possibility to obtain any solid colour after the addition of 10–15% pigment from SPECTRAL BASE 2.0 or SPECTRAL 2K colour box.
● structural effect with semi-matt finish
● possibility to obtain various structures depending on the method of application
● using COBRA anti-slip additive reduces the risk of fall, e.g. on all-terrain and commercial vehicle platforms, stairs, etc.
● quick and easy application
● excellent visual effect

Substrates

• Steel, galvanized steel, stainless steel, aluminum – prime surfaces with a 2K epoxy primer or 2K urethane primer, sand using abrasive paper with gradation from P180 to P320, clean and degrease (Silicone Remover).
• Polyester laminates – sand using abrasive paper P180 or by using unwoven abrasive fabric, clean and degrease (Silicone Remover).
• Polyester body fillers – sand using abrasive paper with gradation from P120 to P240, clean and degrease (Silicone Remover).
• Plastic surfaces – degrease (Silicone Remover), sand with abrasive paper P240 or with Troton’s unwoven abrasive fabric, degrease again (Silicone Remover), prime with an adhesive promoter, such as Plastic Primer. Due to the many different types of plastic, adhesion testing is advised. Do not apply the product directly on bare metal. Cobra should be applied on primed surfaces or on 2K topcoats and basecoats after proper preparation (be careful with the application on old coatings, thinner testing is advised). Always abrade, clean and degrease the surface before application.
• Do not apply the product on 1K primers. Instead, always prime the surfaces for the Cobra application with a 2K urethane primer, 2K epoxy primer or 2K etching primer. Always wait the proper drying and hardening time of etching primer before application.
• Do not apply Cobra directly on bare original paint or directly on coatings of car body parts from the aftermarket.





  Application process

  Mixing proportion

  3:1
  By weight: 1.75 lbs+0.47 lbs
  By volume: 20oz+7oz

  Shake the product before opening. Open the lid, add hardener and close back the lid. Shake very well.

• Por life for the mixture

  About 1 h at 68ºF

• Number of layers

  Number of layers
  2 layers.
  1 dry layer of approx. 5.90 mils.

  1. First layer: spray evenly with sweeping motion and pressure of 2-4 bar until the proper coverage is obtained. The distance from the surface to be painted should be of approx. 125 inches.
  2. Allow to flash off for 30÷50 minutes between coats.
  3. In order to obtain the desired texture, reduce the pressure and increase the distance from the surface to be painted.

  To achieve fine texture, apply the second layer with a fine spray by reducing the pressure and material flow.

  The distance from the object and pressure change the created structure.

• Drying time

  Dust dry: 1 h/ 68°F
  Touch dry – ready for assembly: 3 days/ 68°F
  Final drying (severe conditions): 7 days/ 68°F

  Temperatures below 68°F significantly increase the hardening time.

  Baking

  In order to accelerate the physical drying time we recommend baking under a maximum temperature of 113°F for 50-60 minutes. Before baking wait the appropriate evaporating time of 1,5 to 2 hours after application.

  Caution! Baking does not accelerate the final drying time. It is recommended to wait 7 days to achieve total hardness of the coating (under severe conditions).

• Gravity feed spray gun

• Proportion ratio

  3:1 + 10÷20% thinner for polyurethane systems

  By weight: 790g+210g+74÷148g
  By volume: 20oz+7oz+3÷6oz

  Shake the product before opening. Open the lid, add hardener and close. Shake very well. Add thinner and shake again until all elements have been incorporated.

• Pot life for the mixture

  About 1 h at 68°F

• Number of layers

  2 layers.
  1 dry layer of approx. 2mils

  Parameters for gravity feed gun
  Nozzle: 1,4÷2,5 mm; Inlet pressure: 29 psi.

  1. First layer – spray evenly with sweeping motion, pressure of 29 psi until the proper coverage is obtained. The distance from the surface to be painted should be of 16inches.
  2. Allow to flash off for 30÷50 minutes between coats.
  3. In order to obtain the desired texture, reduce the pressure and increase the distance from the surface to be painted.

  To achieve fine texture, apply the second layer with a fine mist spray by reducing the pressure and material flow.

  The distance from the object and pressure change the created structure.

• Drying time

  Dust dry: 1 h / 68°F
  Touch dry – ready for assembly: 3 days/ 68°F
  Final drying (severe conditions): 7 days/68°F

  Temperatures below 68°F significantly increase the hardening time.

  Baking

  In order to accelerate the physical drying time we recommend baking under a maximum temperature of 113°F for 50-60 minutes. Before baking wait the appropriate evaporating time of 1,5 to 2 hours after application.

  ATTENTION! Baking does not accelerate the final drying time. It is recommended to wait 7 days to achieve total hardness of the coating (under severe conditions).

• COBRA Tintable

  Color can be added to the tintable COBRA version with the addition of diluting products (for the whole mixture)

  • Urethane solvent borne basecoat toner- 5÷10%
  • Urethane solvent borne basecoat- 10÷15%
  • Urethane solvent borne topcoat- 10÷1

• COBRA black/ tintable

  Rangers can be over coated. Wait 24 hours for the product to dry. Abrade surface with Troton’s fine unwoven abrasive fabric, clean and degrease (Silicone Remover).

• Anti-slip additive

  To create a non-slip surface add anti-slip additive powder (0.35g).

  1. Packaging contains 10g of anti-slip additive needed to fill one bottle of protective coating (2.2lbs/20oz mixture).
  2. Pour the contents directly into the COBRA bottle, add hardener and shake very well for about 2 minutes.
  3. A non slip surface can be achieved by using a gravel guard or conventional gun. The anti-slip additive can be added to all layers or only to the last one.

• COBRA BLACK		HARDENER
  oz	g	oz	g
  7.40	263	2.47	70
  11.10	395	3.70	105
  22.22	790	7.40	210
  44.45	1580	14.80	420
  66.67	2370	22.22	630

• Application

  	Gravel guard gun	Gravity Gun
  Mixing ratio	3:1	3:1+10÷20%
  Nozzle	–	1.4÷2.5 mm
  Inlet pressure	29÷58 psi	29 psi
  Distance	8÷20 inch	8÷20 inch
  Number of layers	2	2
  Flash off between layers	30÷50 minutes	30÷50 minutes
  Ready for assembly	3 days	3 days
  Through dry(severe conditions)	7 days	7 days
  Efficiency	8÷10 ft2	3,5÷12 ft2

• General notes

  • Do not exceed recommended doses of the hardener!
  • The best repair results can be achieved by painting at room temperature.
  • The temperature in the body shop and the temperature of the product should be similar.
  • When working with 2K products, it is recommended to use personal protection equipment. Protect the eyes and airways.
  • The rooms should be well ventilated.
  • Clean the guns and equipment immediately after use.

  Caution: To maintain safety, always follow the instructions given in the MSDS for the products.
